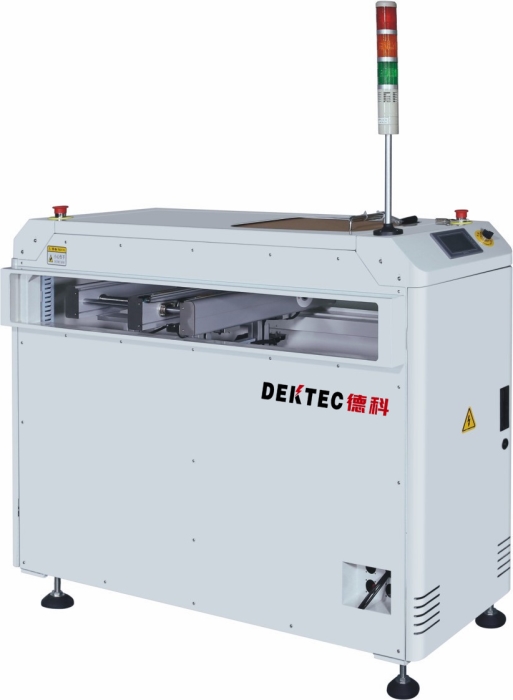

This shuttle conveyor is used to transporting PCB board from one line into another line or vice versa the orientation of the board is not changed during traversing .
- PLC program control and Easy to operate
- By-pass mode selectable.
- Customized traversing distance.
- Parallel and smooth width adjustment ,enclosed design and ensures highest level of safety.
- Frequency controlled traversing speed.
- Transport height:910±30mm
- Transport direction :left to right (or right to left)
- Interface :SMEMA
- Conveyor concept: ESD flat belt.
- Belt speed :0.5-20m/min adjustable.
- PCB edge support:3mm
- Cycle time: depends on traversing distance
- Power supply :110V or 220V
Dimension mm
PCB size mm
weight(KG)
500*W*1100
50*50-330*250
150
500*W*1100
50*50-460*330
250
