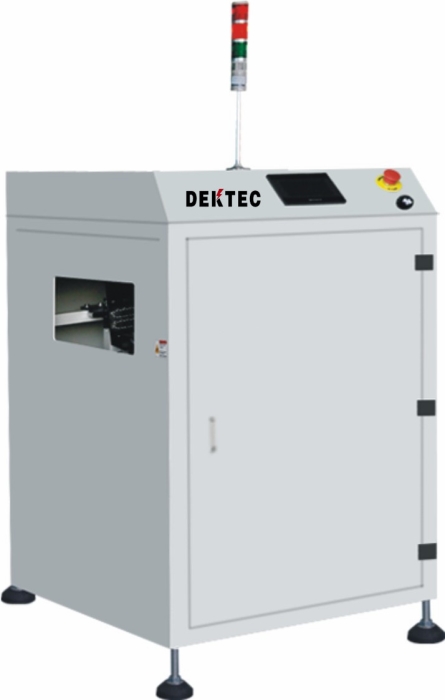

vacuum board loader machine

Name:vacuum board loader machine


Automatic vacuum board loader machine Features.

This units is designed for automatic loading of unpopulated PCB’s onto the line using suction cups, the top PCB is lifted from stack and lowered onto belt segment.

-  PLC program control and convenient operation

-  Smooth and precise width adjustment( lead screw)

-  Flexible suction cup positioning.

-  Convenient front door stack loading.

-  SMEMA compatible.

-  Transport height:900±30mm

-  Conveyer concept: ESD belt(round or flat)

-  PCB edge support:3mm

-  Max. PCB capacity:400pcs.

-  Cycle time: approx.12 seconds. or specify

-  Power supply: 110V or 220V

-  Air supply:4-6 bar

-  Air consumption: 10ltr/min max.

-  Transport direction: from left to right or right to left

-  The machine size can be specify.

-  And other options available on request.

Dimension MM

PCB size mm

Weight KG
