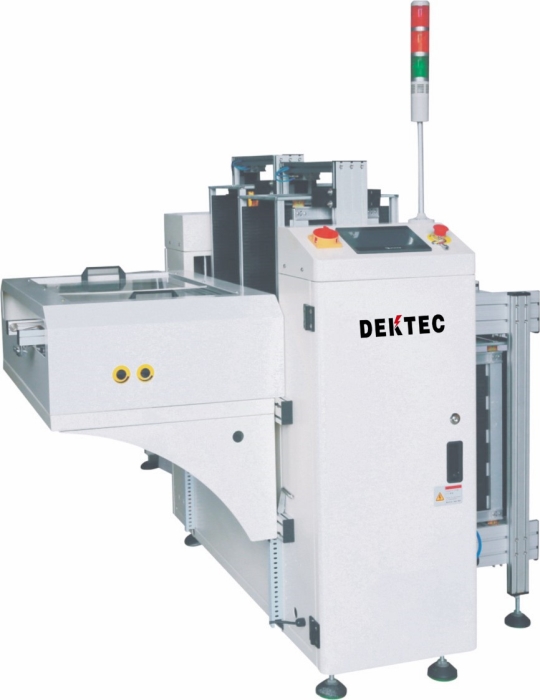

NG/OK magazine unloader

Name:NG/OK magazine unloader

Details

NG/OK magazine unloader feature:

This device is  used to receive board SMT circuit board production line operation, suitable for receive NG board and OK board after soldering.

- PLC program control easy to operate

- Selectable pitch settings

- Good or bad PCB board separation.

- Unique guide rail driven positioning of shuttle conveyor

- Tower light display for machine status.

- Conveyor width adjustment using handwheel.

- Pitch distance:10,20,30,40mm or specify

- Transport height:900±30mm

- Transport direction: from left to right or right to left

- Interface :SMEMA

- Conveyer concept: ESD belt(round or flat)

- Belt speed:16m/min

- PCB edge support:3mm

- Components clearance :top30 bottom 30(depend on pitch)

- Power supply: 110V or 220V

- Air supply:4-6 bar

- Air consumption: 10ltr/min max.

- PCB unloader time: about 10seconds

- Magazine change over time: about 30seconds

- The machine size can be specify.

Dimension(l*W*H) mm

Rack size(L*W*H)mm

PCB size mm

Weight KG

1700*740*1150

355*320*563

50*50-330*250

350kg

1800*820*1150

460*400*563

50*50-445*330

400kg

2000*880*1150

535*460*570

50*50-530*390

470kg

2100*960*1150

535*530*570

50*50-530*460

520kg
