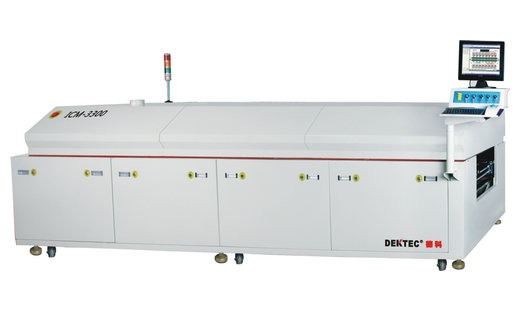

Name：IR Curing oven
Details
General of machine:
l The In-line Curing Machine (ICM Series) from DEKTEC is ideal for high-volume curing production. They are easy to integrate with different Conformal Coating machines.
l Available in different lengths, they provide the flexibility to match your production requirements
and feature robust construction and a streamlined appearance.
l The oven is equipped with a unique downdraft exhaust design. Plenums below the conveyor
rails, it will remove volatile organic compounds (VOC), which are typically found in conformal coating
applications. This provides a safe operating environment when coupled to your external exhaust system.
l The upper cover can be lifted manually. So to maintain the heater easily.
Heating system:
l The cure chamber achieves a thermally uniform atmosphere with special Far Infrared carbon silicon heater
from Japan originally.
l All the heaters can be adjusted height manually, so to get best heat performance for different products.
l The inner tunnel of the oven is made of stainless steel which easy for cleans.
l Specially enlarged the heat-resistant layer to 100mm, prevent the heat lose effectively, so to save energy lose.
Electrical system:
l PLC and color touch screen for controlling. It can store more than 50 groups of
parameters in the touch screen.
l PID for temperature controlling, temperature can be controlled under +/-2C degree.
l Brand electrical component like Schneider (German) breaker, Omron (Japan) box
breaker. It runs stable and lower noise.
Conveyor system:
l At entrance and exit there are plate we can adjust the height, so to prevent heat lose from both end.
Fine pinch mesh belt conveyor system. It able to carrier 20kg products.
|
Items |
ICM-2200 |
ICM-3300 |
ICM-4600 |
|
General of machine |
|||
|
Overall dimension |
L3400*W1370*H1600 |
L4450*W1370*H1600 |
L6040*W1370*H1600 |
|
Net weight |
about 1100Kg |
about 1600Kg |
about 1800Kg |
|
Power supply |
3 phase 380v 50hz Optional: 3phase 440v, 3phase 220v |
||
|
Max temp |
350 c degree |
||
|
General power |
22kw |
32 kw |
44 kw |
|
Running power |
3---10kw |
4---13kw |
5---20kw |
|
Heater and controlling system |
|||
|
Heater type |
Far Infrared heater |
||
|
Heater group number |
7 zones |
10 zones |
14 zones |
|
Heating zone length |
2180mm |
3250mm |
4620mm |
|
Tem control |
PID close-loop，SSR drive |
||
|
Temp stability |
±1 ℃ |
||
|
Temp uniform |
±5 ℃ |
||
|
Temp range |
Ambient---350 ℃ |
||
|
Ramp time |
5--15 minutes |
||
|
Profile change time |
5--15 minutes |
||
|
Control type |
Touch Screen + PLC control OR PC + PLC |
||
|
Conveyor system |
|||
|
Conveyor type |
Pin chain |
||
|
Conveyor height |
940±20mm |
||
|
Product width |
50-400mm |
||
|
Conveyor speed |
100--600mm/min |
||
|
Conveyor direction |
left to Right |
||
|
Above board clearance |
100mm |
||
|
Under board clearance |
100mm |
||
|
Cooling type |
Fans |
||
|
Exhausting |
|||
|
Two exhausting port |
Entrance and exit |
||
|
Bottom exhausting |
Lightly make the heat flow to bottom, exhaust the VOC air |
||
