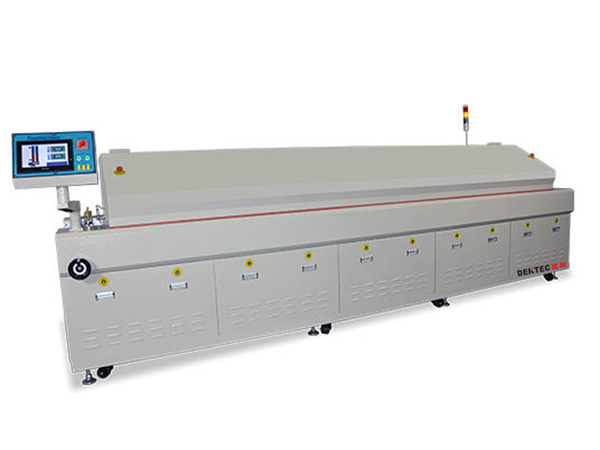

reflow oven M6/M8

Name:reflow oven M6/M8

Details

M6/M8 Lead Free Reflow Oven Specifications


 Model

 M6

M8

 Heating zones

Upper 6 zones

Upper 8 zones

Bottom 6 zones

 Bottom 8 zones

Heating tunnel

1938mm

 2673mm

Dimension

L3571*W1200*H1450mm

 L4600*W1200*H1450mm

Net weight

about 1100Kg

about 1300Kg

General power

41KW

53KW

Power consumption

Approx.8--8KW

Approx.5--9KW

Rising time

12 mins

13 mins

Controlling type

Touch screen and PLC

Touch screen and PLC

Heating method

Fully forced air convection

Fully forced air convection

 Temperature controlling

PID close-loop control, SSR drive

PID close-loop control, SSR drive

Temperature range

Ambient---350

Ambient---350

 Temperature accurancy

 ±1

 ±1

Temperature uniform

±2

±2

 Cooling

2 cooling zones, industrial chiller for cooling

2 cooling zones, industrial chiller for cooling

Conveyor method

Mesh belt and chain conveyor

Mesh belt and chain conveyor

Conveyor height

900±20mm

900±20mm

 Mesh belt width

450mm

450mm

 Max PCB width

400mm

400mm

Width adjustment

Manual

Manual

PCB clearance

 30mm

 30mm

 Conveyor direction

 Left to right

 Left to right

Conveyor speed

0-1000mm/min

0-1000mm/min

Hook lift

Electrical screw pole

Electrical screw pole

 Power supply(Standard)

380v,3ph,50hz

380v,3ph,50hz
