Name：economy wave sloder E100
Details

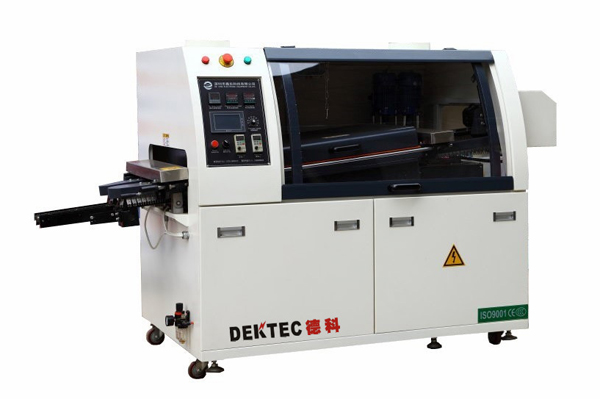

E100 wave slodering machine specifications:
◎ Arc observation windows, the appearances are beautiful and elegant, convenient to operate and maintain
◎. Two-section independent 0.6m preheating zone,making PCB achieve a best welding effect.
◎ Patented alloy chain claw, never become distorted, with long service life.
◎ Manually adjust solder machine lifting, in and out of solder machine are adjusted manually.
◎Solder machine adopts adjustable nozzle design; Oxidation amount of solder splash is super low, it adopts the design principle of liquid tin flow, reducing the impact oxygenation, and the wave soldering can be adjusted according to the thickness of PCB plate, massively reducing the oxygenation of soldering plate, the adjustable distance is 80-250MM.
◎Atomization adopts stable and durable stepper motor drive.
|
PCB width |
Max.50~250mm |
|
Transport height |
750±50mm |
|
Transport speed |
0~1800mm/Min |
|
Transport angle |
3~7℃ |
|
Conveyor direction |
L R/R L (optional) |
|
Height of the PCB |
Max.100mm |
|
Wave soldering height range |
0-12mm adjustable |
|
Number of wave soldering |
2 |
|
Length of preheating zone |
700mm |
|
Number of preheating zone |
2 |
|
Preheating zone power |
6kw |
|
Temperature of preheating zone |
Room temperature 〜250°C |
|
Heating mode |
Hot air / infrared |
|
Applicable solder type |
lead-free solder /ordinary solder |
|
Solder machine power |
6kw |
|
Amount of tin dissolving of pot |
Approx.100kg |
|
Solder machine temperature |
Indoor temperature～300℃. |
|
Temperature control method |
P. I. D + SSR |
|
Control method |
Mitsubishi PLC+ touch screen |
|
Scaling powder capacity |
Max5.2L |
|
Scaling powder flow |
10~100ml/min |
|
Spraying mode |
Stepper motor |
|
Power supply |
3PH 380V 50HZ |
|
Starting power (total power) |
max.12kw |
|
operating power |
Approx.2kw |
|
dimensions |
L2150xW1100xH1450mm |
|
Weight |
Approx.400kg |
