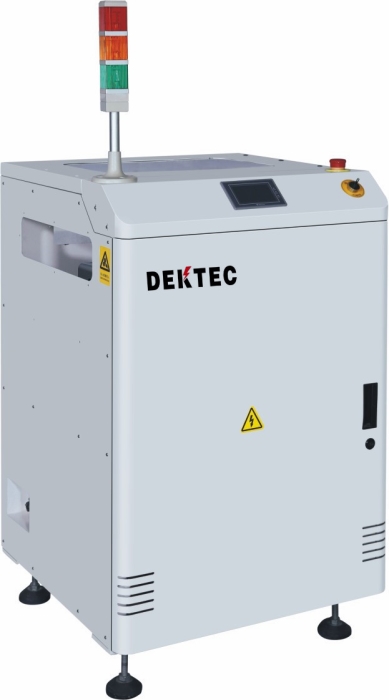

Turning conveyor feature:
This conveyor is used to change the flow direction of PCB assembly line ,the PCB is transferred onto the built-in ESD belt conveyor ,which turns either clockwise or counter clockwise. (rotate 90 degrees,180 degrees ,270 degrees)
- Transport height:910±30mm
- Transport direction :left to right (or right to left)
- Interface :SMEMA
- Conveyor concept: ESD belt. (round or flat)
- Belt speed :0.5-20m/min adjustable.
- PCB edge support:3mm
- Power supply :110V or 220V
- Different size available upon client’s request
Dimension(L*W*H) |
PCB size |
Weight(KG) |
600*580*1100 |
50*50-330*250 |
150 |
680*700*1100 |
50*50-460*330 |
200 |
