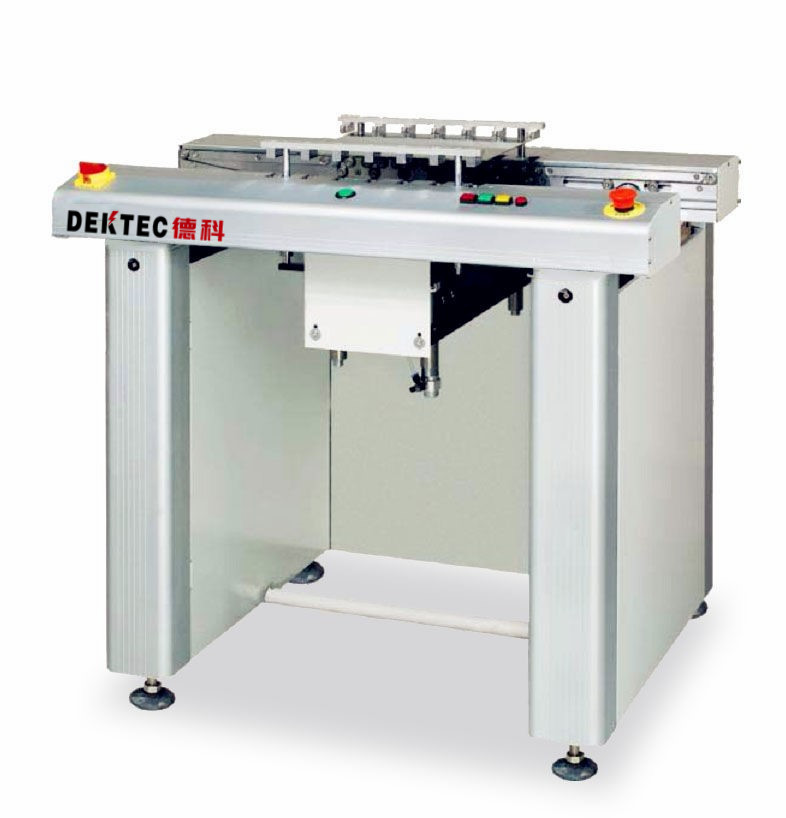

High Version Reject Conveyor

Name:High Version Reject Conveyor

Details

High Version Reject Conveyor Series Features

Pannasonic PLC Program control.

Start / Stop push button.

Anti-static conveyor belt.

Centre PCB stop position.

Touchscreen control pannel.

Easy way of belt replacement.

Reject and by-pass mode selectable.

Heavy bottom design to prevent shifting.

PCB precise stopping in position.

Smooth and parallel width adjustment.(lead screw).

SMEMA compatible.

High Version Reject Conveyor Series Specifications

Transport height

910mm ±30mm

Belt speed

0.5-20m/min adjustable

Transfer direction

Left to right

PCB edge support

3mm

Operation side

Front of the machine

Components clearance

Bottom 30 mm or specify

Fixed rail

Front of the machine

Power supply

230 VAC/50 Hz/1 Ph

Interface

SMEMA

Power consumption

100VA max. or specify

Conveyer concept

ESD flat belt

Load bearing

1.5kg/PCB

High Version Reject Conveyor Series Options

Automatic width adjustment (set in touchscreen)

Light fixture with tower light

Additional lift positions for extra buffer capacity.

Other options available on request.
