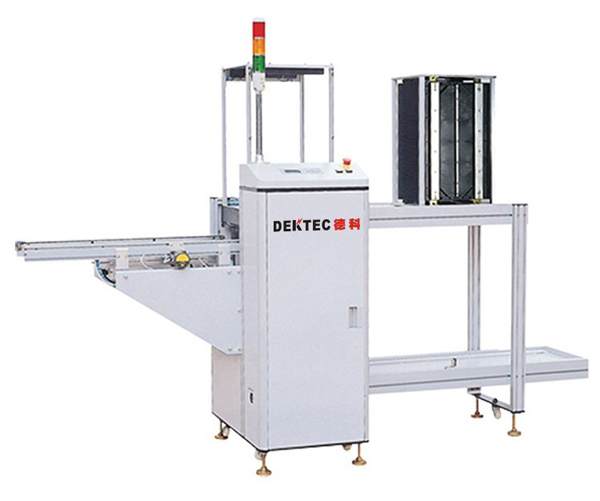

Name：SMT Loader series
Details
Specification SMT magazine loader/ unloader
l This unit is used for loading and unloading of PCB
l No. of magazine :upper conveyor :1magazine lower conveyor :2mazgazine
l Time feed PCB : approx.6 seconds or specify
l Power supply: 110v or 220v
l Power :max.300VA
l Transport direction :from left to right or right to left.
|
Model |
Dimension(mm) |
PCB size(mm) |
Rack size(mm) |
weight |
|
Loader |
1330*780*1250 |
50*50-330*250 |
355*320*563 |
140kg |
|
1650*850*1250 |
50*50-445*330 |
460*400*563 |
200kg |
|
|
1800*900*1250 |
50*50-530*390 |
535*460*563 |
240kg |
|
|
Unloader |
1730*780*1250 |
50*50-330*250 |
355*320*563 |
160kg |
|
2070*850*1250 |
50*50-445*330 |
460*400*563 |
220kg |
|
|
2660*910*1250 |
50*50-530*390 |
535*460*563 |
280kg |
