Name： reflow oven E4/E6
Details

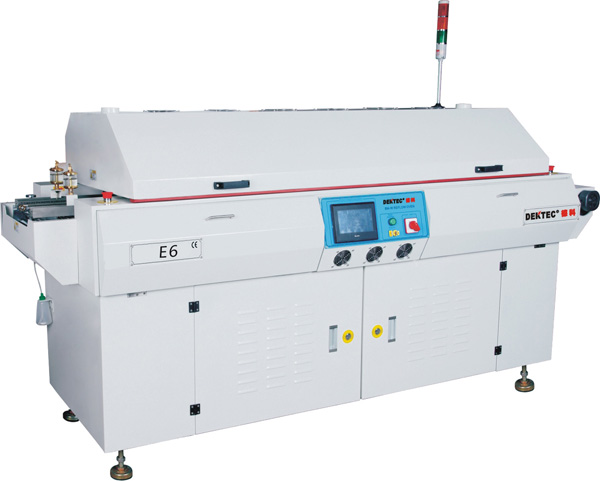

E4/E6 Lead Free Reflow Oven Features
● Streamline shape design make the oven looks great. Touch screen with PLC controller which can save 50 groups of temperature parameters and provide extra 2 ports for profile test.
● Equipped with brand electrical component like Schneider (German made ) contactor, Omron (Japan made ) box relay.CE certificated high temperature resistant blower ensure stable and lower noise operation.
● Upper zone, hood and electrical box cover can be opened easily, easy for cleaning and maintenance.
● The inner tunnel of the oven is made of stainless steel which can stand the high temperature and easy for cleaning.
● The entire upper and bottom zones are forced hot air convection.
● Stainless steel mesh belt, chain conveyor and SMEMA connector.
● Unique program design can automatically adjust the start power consumption and lower the start current.
|
Model |
E4 |
E6 |
|
Heating zones |
Upper 4 zones |
Upper 6 zones |
|
Bottom 4 zones |
Bottom 6 zones |
|
|
Heating tunnel |
980mm |
1540mm |
|
Dimension |
L1920*W750*H1250 |
L2550*W750*H1250 |
|
Net weight |
about 500Kg |
about 690Kg |
|
General power |
23KW |
33KW |
|
Power consumption |
Approx.3--7KW |
Approx.4--8KW |
|
Rising time |
15 mins |
15 mins |
|
Controlling type |
Touch screen and PLC |
Touch screen and PLC |
|
Heating method |
Fully forced air convection |
Fully forced air convection |
|
Temperature controlling |
PID close-loop control, SSR drive |
PID close-loop control, SSR drive |
|
Temperature range |
Ambient---350℃ |
Ambient---350℃ |
|
Temperature accurancy |
±1 ℃ |
±1 ℃ |
|
Temperature uniform |
±2 ℃ |
±2 ℃ |
|
Cooling |
one cooling zones, fans for cooling |
one cooling zones, fans for cooling |
|
Conveyor method |
Mesh belt and chain conveyor |
Mesh belt and chain conveyor |
|
Conveyor height |
900±20mm |
900±20mm |
|
Mesh belt width |
330mm |
330mm |
|
Max PCB width |
300mm |
300mm |
|
PCB clearance |
30mm |
30mm |
|
Conveyor direction |
Left to right |
Left to right |
|
Conveyor speed |
0-900mm/min |
0-900mm/min |
|
Hook lift |
Manual |
Manual |
|
Power supply |
380v,3ph,50hz |
380v,3ph,50hz |
reflow oven
